Product Description
Description

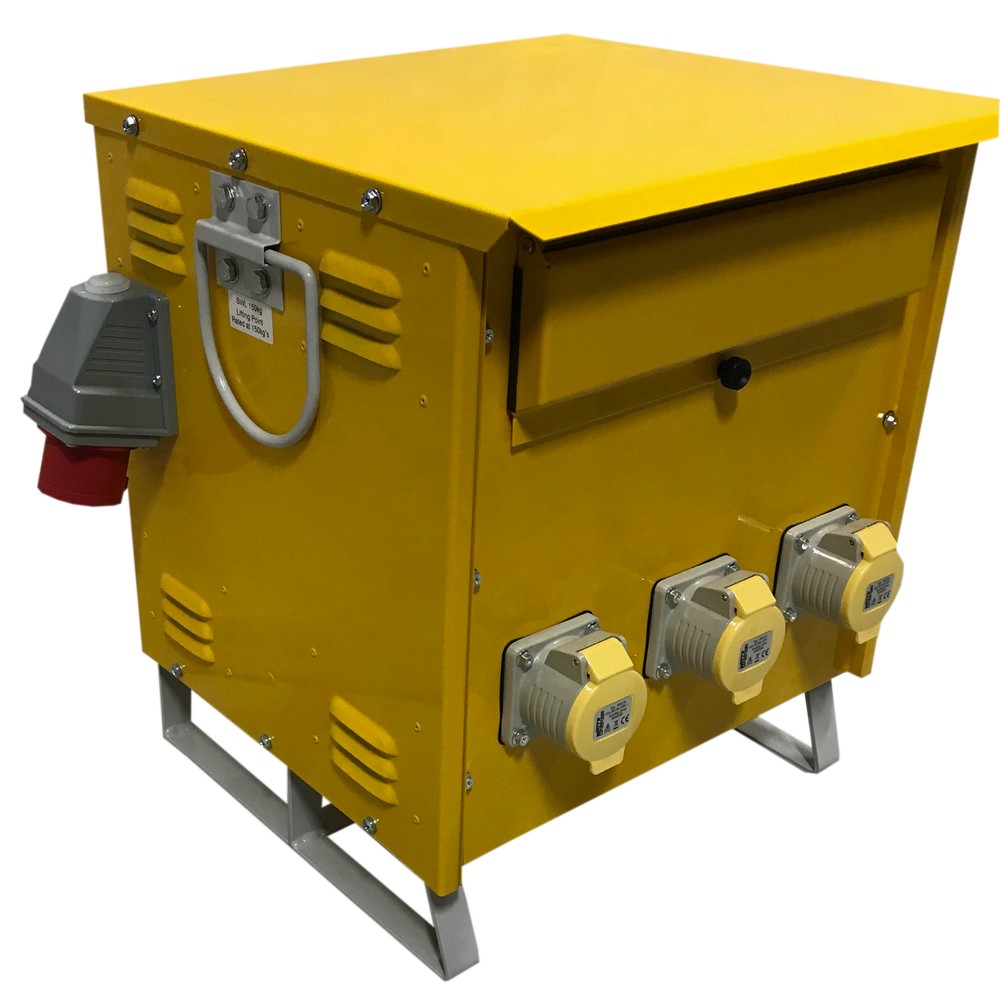

Triple Pole MCB for Primary input overload protection
Heavy duty sheet steel enclosure to IP44
Output sockets to BSEN 60309 / IEC 60309 (Previously BS4343)
Each 32A 110V socket outlet individually MCB protected as standard(can be supplied c/w MCB/RCD protection as optional extra).
Specifications;
Weight (kg): 85
Height (mm): 550
Depth (mm): 440
Width (mm): 430
Protection: Input – 1 x 20A 3P Schneider MCB,
Outputs – 3 x 32A 2P Schneider MCB’s.
Continuous Rating: 10kVA
Input Voltage: 3 Phase 400V
Output Voltages: 110V CTE
Output Sockets: 3 No. 32A 110V.
IP Rating: IP44
Terminals: Internal Din rail mounted terminals for 2.5 – 16.0mm²
