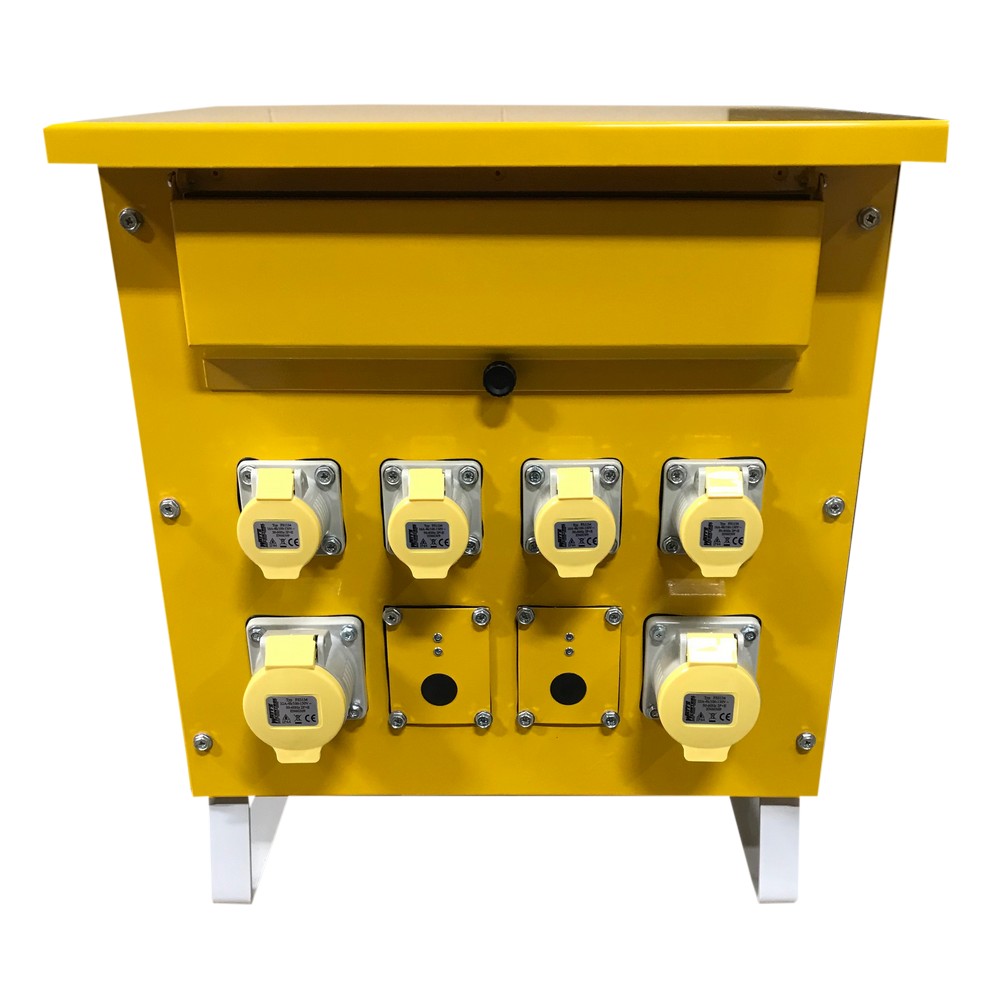

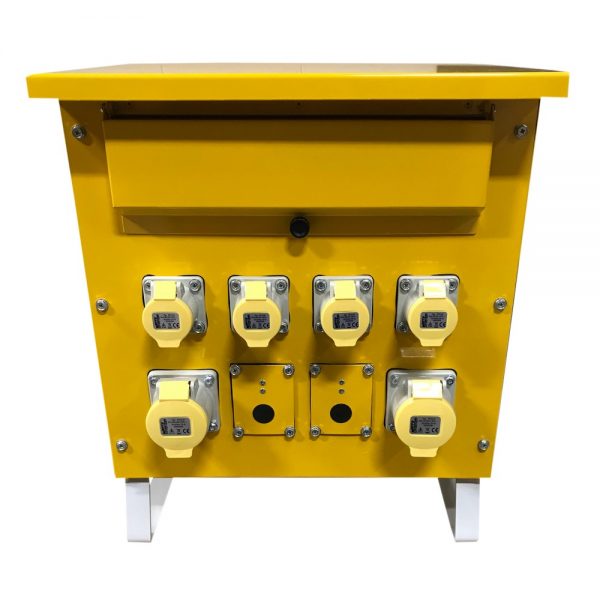

Product Description
Description
Triple Pole MCB for Primary input overload protection
Heavy duty sheet steel enclosure to IP22
Output sockets to BSEN 60309 / IEC 60309 (Previously BS4343)
Each 32A socket protected by MCB’s, each pair of 16A sockets protected by MCB’s
Specifications;
Weight (kg): 74
Height (mm): 550
Depth (mm): 440
Width (mm): 430
Protection: Input – 1 x 20A 3P Schneider MCB,
Outputs – 2 x 2P 20A & 2 x 2P 32A Schneider MCB’s.
Continuous Rating: 10kVA
Input Voltage: 3 Phase 400V
Output Voltages: 110V CTE
Output Sockets: 4 No. 16A + 2 No.32A 110V
IP Rating: IP22
Terminals: Internal Din rail mounted terminals for 2.5 – 16.0mm²
