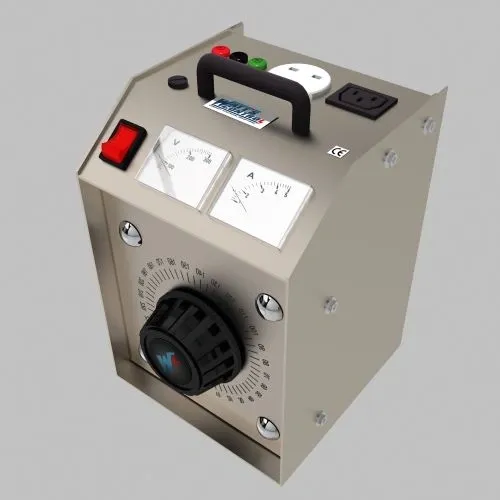

The Portable Variac – 5A (1.2kVA) provides a versatile, safe, and efficient solution for testing mains-powered equipment in laboratories, service areas, or field environments. Designed for flexibility, this unit offers three optional output connection methods, making it ideal for a wide variety of testing applications.
With a 1.2kVA rating and 5A output capacity, this variac delivers smooth, linear output with no waveform distortion, ensuring reliable and accurate voltage control for testing or experimental purposes.
1.2kVA power rating
5A current rating
Input voltage: 230V
Output voltage: Variable 0–112% of input
Three optional output connections:
BS1363 UK domestic mains socket
IEC60320 domestic appliance type socket (C13, 10A)
4mm diameter “banana” sockets
Output monitoring: built-in voltmeter and ammeter
High efficiency operation
Smooth and linear output
No waveform distortion
Push-button rocker switch with illuminated indicator
Mains input lead with BS1363A plug
Weight: 10kg
Height: 270mm
Depth: 200mm
Width: 210mm
Engineered for professional testing applications, this portable variac provides versatile connection options, easy monitoring of voltage and current, and precise, safe voltage control — making it the ideal portable tool for laboratories, service areas, and field use.
